Truleka

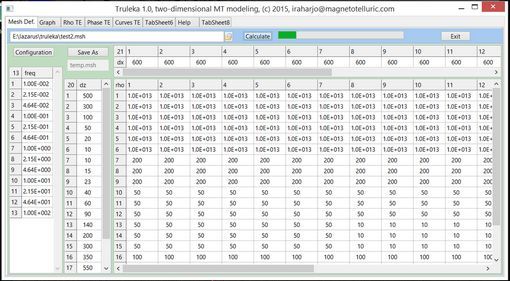

Truleka is a simple 2-D MT forward modeling software. At the moment, this  finite difference software simulates TE (Transverse Electric) response of a 2-D grid. The grid uses flat earth, i.e. topography is not included.  The figure below shows how the geomtery and the resistivity of the grid are  designed.

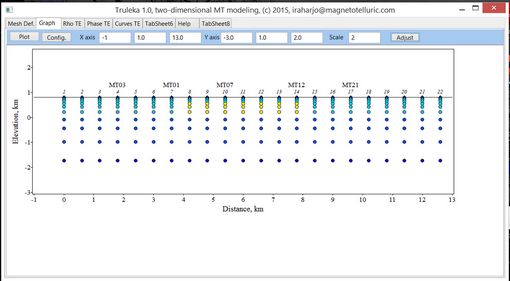

The figure below shows the grid and the MT sites. The MT site assignment can be easily moved around on the grid with nodal numbering.

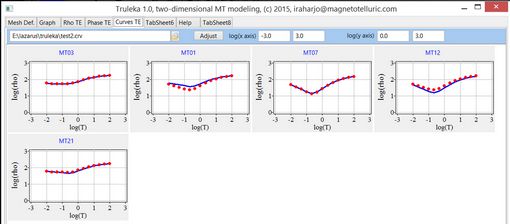

And here are the TE calculated response with the observed  curves (when field data are available).

Features

The TM (Transverse Magnetic) mode is on the way.
