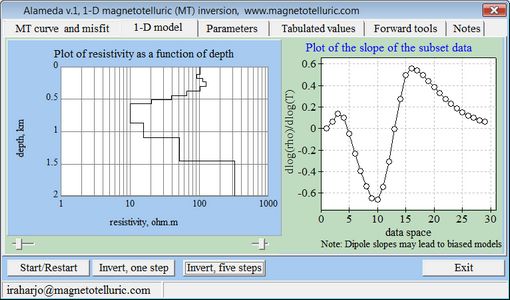

Alameda 1-D model screen shot

Features

The left panel shows the resistivity of as a function of depth.The right panel shows the slope of the apparent resistivity data. The behavior of the slope is helpful in masking out spurious points.
